kestrel 3500气象仪/风速仪

时间:2018-06-30 08:02:16 来源:美国kestrel 点击:6492次

Kestrel 3500风速仪/手持式气象仪可提供测量值,显示屏下面有3个按键,操作简单,可显示当前风速、更大风速、平均风速、温度、风寒、相对湿度、热度指数数、露点温度、湿球温度、大气压和海拔高度。NK3500(Kestrel 3500)是旋转风杯式风速仪,体积小巧,方便携带。采用高精度轴承,轻量叶轮,可测量风速值,即便是在风速很小的情况下。如果叶轮损坏,可更换。内置温度和相对湿度和大气压传感器。Kestrel 3500采用低功耗微处理器,明亮LCD显示,可读取当前风速、更大风速、平均风速并能选择风速单位。对于夜晚黑暗使用环境,NK3500草绿色版本还特别增加设计了红色背景光,可提供照明。

美国NK3500风速仪kestrel3500便携式风速仪

Kestrel 3500风速仪手持式气象仪可提供测量值,显示屏下面有3个按键,操作简单,可显示当前风速、更大风速、平均风速、温度、风寒、相对湿度、热度指数数、露点温度、湿球温度、大气压和海拔高度。NK3500(Kestrel 3500)气象仪是旋转风杯式风速仪,体积小巧,方便携带。采用高精度轴承,轻量叶轮,可测量风速值,即便是在风速很小的情况下。如果叶轮损坏,可更换。内置温度和相对湿度和大气压传感器。Kestrel 3500采用低功耗微处理器,明亮LCD显示,可读取当前风速、更大风速、平均风速并能选择风速单位。对于夜晚黑暗使用环境,NK3500草绿色版本还特别增加设计了红色背景光,可提供照明。

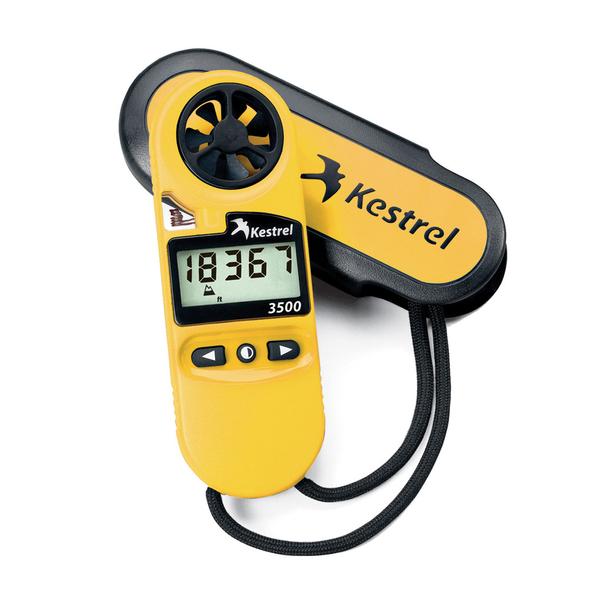

kestrel 3500气象仪/风速仪

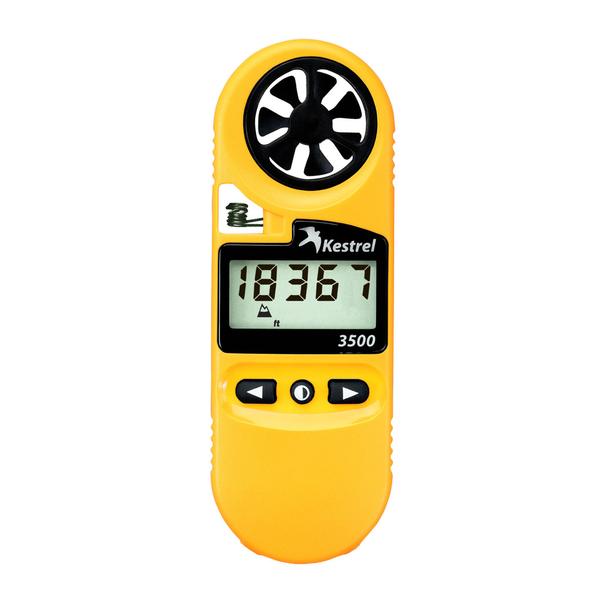

美国NK3500/kestrel3500风速仪正面

Kestrel 3500采用标准锂电池,可更换,能保证操作至少400小时。如果风速仪在超过45分钟都没有任何操作的话,将会自动切断电源。Kestrel 3500便携式包装,防水、防震设计,能飘浮在水上。Kestrel 3500测量项目:当前风速、平均风速、更大风速、温度、风寒、相对湿度、热度指数、露点温度、湿球温度、大气压力、海拔高度。

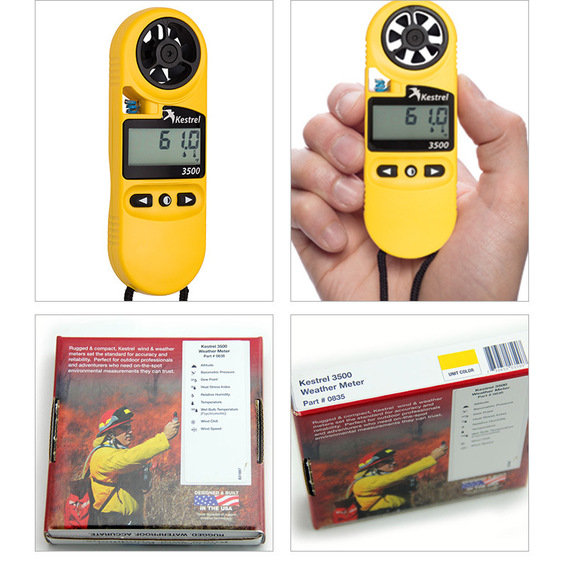

美国NK3500/kestrel3500风速仪大小

美国NK3500风速仪kestrel3500便携式风速仪技术参数:

测量项目测量范围精度分辨率
风速0.6~60m/s±3%0.1 m/s
空气温度-29℃-70℃1℃0.1℃
风寒0.4 to 40 m/s, -45.6 to 10.0 °C1℃0.1℃
相对湿度5-95%3%0.1
热力指数21.1 to 54.4 °C, 0 to 100 %RH2℃0.1℃
露点温度-29.0 to 70.0 °C, 20.0 to 95.0 %RH2℃0.1℃
气压300~1100hPa1.5 hPa/mb0.1 hPa/mb
海拔-2000m-9000m15m1m
湿球温度0-37.8℃,5.0 - 95.0 %RH, -2000.0 to 9000.0 hPa,<6000 m2℃0.1℃
操作温度-45℃-125℃
LCD和电池温度-10℃-55℃
电源CR2032电池,可用400个小时
外形尺寸122×42×18mm
重量65g


美国NK3500/kestrel3500风速仪

美国NK3500风速仪kestrel3500便携式风速仪英文介绍:

Kestrel Meter 3500 Weather Meter

The Kestrel 3500 Weather Meter was designed as a full weather meter without the ability to capture and store data as with the next level up with the Kestrel 5000. Depending on your budget, the 5000 at just a little more in price is something to consider with a much brighter screen with the newest technology, including an RH that does not need to be calibrated.

The Kestrel 3500 measures temperature, wind speeds, barometric phenomena, pressure trends of up to 3 hours, and more. The Kestrel 3500 provides a complete range of weather measurements, but does not log accumulated data like the more high-tech weather meters of the Kestrel 5000 series. For those who need a full reading of only the latest weather information, the 3500 is the ideal Kestrel Meter.

A quick compare chart of the basic models shows you the quick differences.

Firefighters might consider the new 3500FW and have a quick look at the Fire Compare Chart.

The Kestrel 3500 Weather Meter has all the capabilities of the Kestrel 3000, plus:
•Barometric Pressure
•Barometric Trend
•Altitude
•Clock


In addition to the Kestrel 3500's pressure trend indicator, it also has the advantage of altitude and barometric pressure measurement. With these features on hand at any time, the Kestrel 3500 becomes an ideal weather instrument for outdoor enthusiasts, sportsmen and women, and anyone else that will benefit from accurate and up to the second weather and barometric information.

The Barometric Trend feature is not quite the graph of the Kestrel 4000 series, but rather an arrow indicator.  The arrow will indicate the trend of the previous 3 hours even if the meter was off.  If the batteries are changed, the arrow will show just the current trend, not historical.

For military, or just those using it at night a lot, the Olive Drab NV version of the Kestrel 3500 features a night-vision preserving backlight. Backlight incorporates optical filter to reduce overall brightness and minimize blue and green spectrum light to preserve night vision.  (Note:  This backlight appears soft greyish pink, not "red", and is still in the visible spectrum, so is not compatible with night-vision equipment.)

The Kestrel 3500's easy to use menu system scrolls through 9 different environmental measurement conditions. It has an external temperature sensor with a waterproof casing that allows you to gauge the temperature of water, snow, and the open air. The sensitive and user-replaceable impeller technology provides accurate wind speed info, and a hard slide-on case, lanyard, and battery are included.

The Kestrel Meter 3500 Weather Meter measures/features
•Barometric pressure
•Altitude
•Relative humidity
•Heat stress index
•Dewpoint
•Wet bulb temperature
•Wind chill
•Air, water, and snow temperature
•Current wind speed
•Average wind speed
•Maximum wind gust
•Real-time clock
•Waterproof and floats
•Large easy-to-read display with backlight
•Data hold function
•High precision pressure sensor
•Quick response, external thermistor
•Forecast weather with pressure trend indicator
•Humidity sensor can be recalibrated in the field with our Relative Humidity Calibration Kit.
•Innovative, thermally adjusted humidity sensordesigned for stability and accuracy in abrupt condition changes
•Patented user-replaceable impeller
•Reliable, portable and easy to use
•Protective cover with sure-grip overmolding
•All instruments and accessories are completely assembled in the USA

Kestrel Meter 3500 Includes
•A slip-on protective cover
•Necklanyard
•CR2032 coin cell battery (Average life 300 hours)





kestrel 3500气象仪/风速仪使用操作说明书和通讯软件请到下载中心下载
